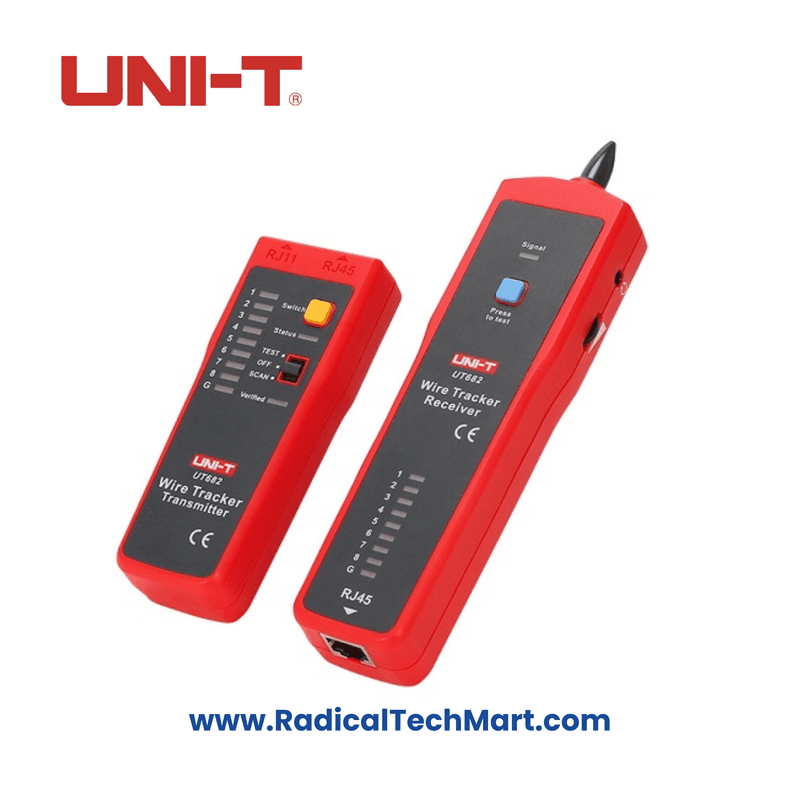

UNI-T UT682 Wire Tracker

The UT682 Wire Tracker is a versatile tool consisting of a transmitter and a receiver, designed to track ethernet, telephone, power cables, and other communication lines without the need to open their insulation. It is particularly useful for troubleshooting ethernet cables and is recommended for debugging communication cables, as well as audio and video cables.

Key Features:

• Wire Types Supported: LAN cable, telephone line, coaxial cable, electric wire
• Indication Light for Signal Strength: Available
• Live Switchboard Wire Tracing: Supported
• Tracing Distance:
  • Switchboard wire tracing: ≥100m
  • Telephone lines: ≥3000m
  • Unshielded cables: ≥320m
  • Shielded cables: ≥320m
• Tests Supported: Open and short circuit testing
• Polarity Indication: For telephone lines, with a DC voltage range of ±(5V~52V)
• Cable and Jack Distinction: Differentiates between telephone lines and LAN cables
• Broken Wire Tracking: Supported
• Transmitter Output Voltage: ≥12V peak-to-peak
• Transmitter Low Battery Indication: 6.6V±0.5V
• Power Supply: Both the transmitter and receiver are powered by 9V batteries
  • Transmitter current: 25mA max
  • Receiver standby current: ~10mA, operating current: <40mA (AC, RMS)
• Receiver Features: Includes a headphone jack for audio feedback
• Wire Alignment and Line Sequence Measurement: Features 9 LEDs (LED1~LED8, LED_G) for line sequence, with selectable fast and slow measurement speeds
• LAN Cable Shielded/Unshielded Indication: Supported
• Transmitter Input Voltage Protection: 52V DC protection
• Product Weight:
  • Transmitter: 125g
  • Receiver: 153g
• Product Dimensions:
  • Transmitter: 125mm x 48mm x 28mm
  • Receiver: 195mm x 48mm x 30mm
• Standard Accessories: 9V batteries (2), RJ11 cable, RJ45 cable, RJ11 cable with alligator clips
• Packaging: Blister pack, carrying bag, English manual

Warranty: 1 Year
